• Base Material: Ti(Gr1,Gr2),TA1,TA2

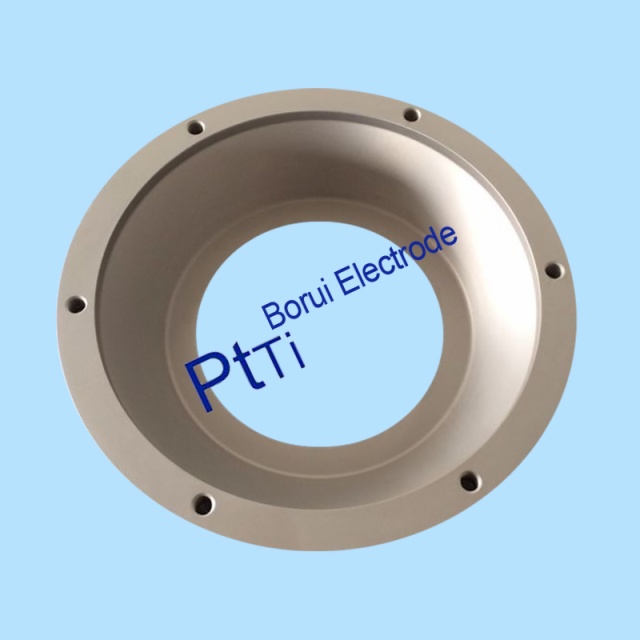

• Shape: Titanium Part
• Density of Current: < 8000 A/㎡
• Workmanship: Plating
• Coating Material: Platinum (purity 99.99%)
• Noble metal content: ≥ 21.48 g/㎡
• Coating Thickness: 0.2-15 μm
• Temperature: ＜ 80 ℃
• PH value: 1-12

Properties:  application-specific design, tight adhesion between platinum layer and base titanium material, stable performance, high current and low voltage, even coating.

Application: seawater, gold potassium cyanide + citric acid, horizontal plating, pulse plating, athode protection. It can be used in acidic or alkaline electroplating solution.
